120 - AIR CYLINDER FILLING 6000

Constant pressure thermoplastic hose for air cylinder filling compressors up to 420 bar (6000 psi)

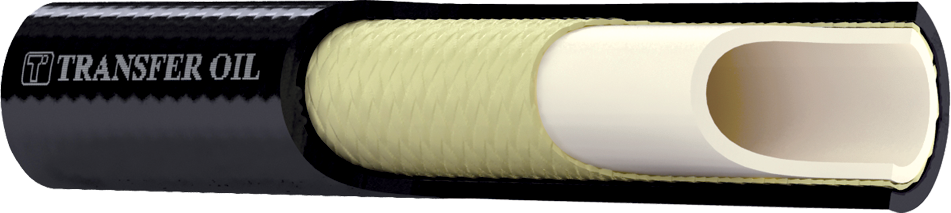

Technical details

Inner Tube

Polyester elastomer

Reinforcement

One braid of aramid fiber

Cover

Polyurethane - black - pinpricked - white inkjet branding

Applications

Air compressors, mobile and stationary units used for filling breathing air cylinders, cascade systems

Features

Flavour free inner tube - Flexible and lightweight - Highly kink resistant - Pin-pricked cover

Description

High pressure hose specifically suitable for filling air cylinders - Flavour free materials eliminates contamination risk - The aramid reinforcement increases lifetime of the hose while reducing the risks of injuries.

Temperature Range

-40 °C (-40 °F) to +80 °C (+176 °F)

Specifications

Complies with CGA G-7.1-2004 commodity specification for breathing air grade E, NFPA 1901. Exceeds the pressure performance requirements of SAE 100R8 / EN855-R8 / ISO3949-R8 The constituents of the hose liner material meets the requirements of FDA regulations under code 21 CFR and European Directive 2002/72/EC.

Note

This hose should not be used with explosive gases such as pure oxygen or hydrogen.

Packaging
