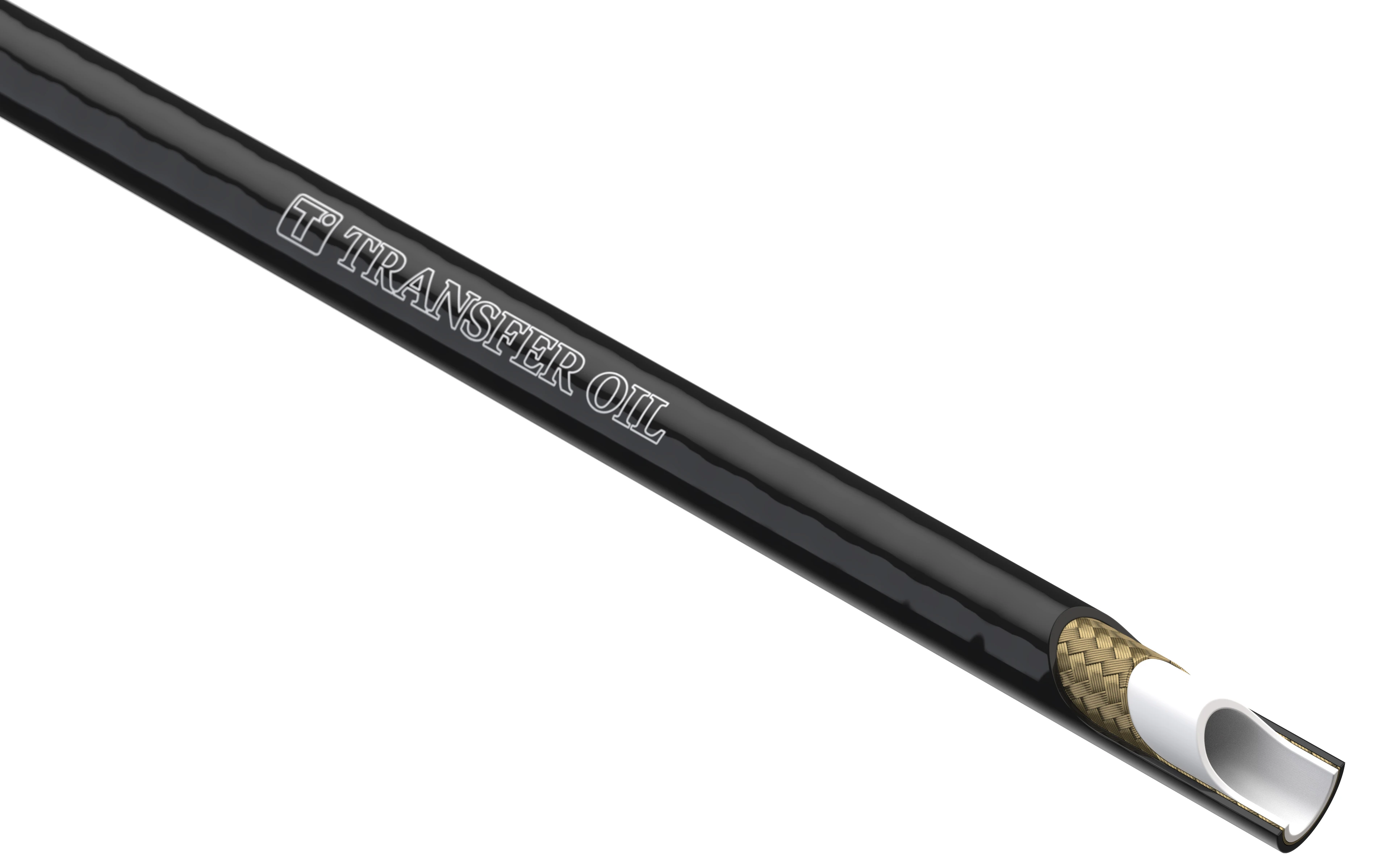

050 - STEEL BRAID CO2 FIRE EXTINGUISHING SYST.

Thermoplastic hose MSHA approved for CO2 fire etinguishing systems from 140 to 300 bar (2000 to 4300 psi)

Technical details

Downloads

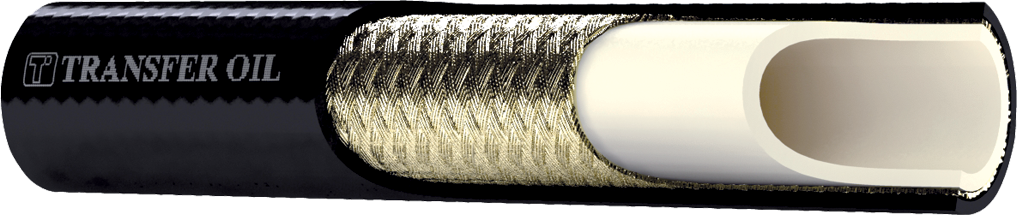

Inner Tube

Polyester elastomer

Reinforcement

One braid of steel wire

Cover

Polyurethane - black - pinpricked - white inkjet branding

Applications

Off-shore and industrial CO2 fire extinguishing installations

Features

One steel braid design for increased mechanical and pressure resistance - Operating temperatures from -60°C to 93°C - pinpricked cover

Description

Hose for use of connection between bottles / valves and manifolds for CO2 - main fire extinguishing systems. The low temperature resistance of cover increases lifetime of these hoses. Approved by MSHA - Mine Safety and Health Administration - number IC-305.

Temperature Range

-60 °C to 93 °C (-76 °F to 199 °F)

Specification

Meets or exceeds pressure specifications of EN853 1ST / EN853 1SN / EN857 1SC / SAE 100R1.

Standard Branding

- TO INDUSTRIAL - Part No - STEEL BRAID C02 FIRE EXTINGUISHING SYSTEMS - Inch Size - DN Size - WP bar / psi - BP bar / BP psi - MSHA IC-305 - MADE IN ITALY - www.transferoil.com - Batch No
