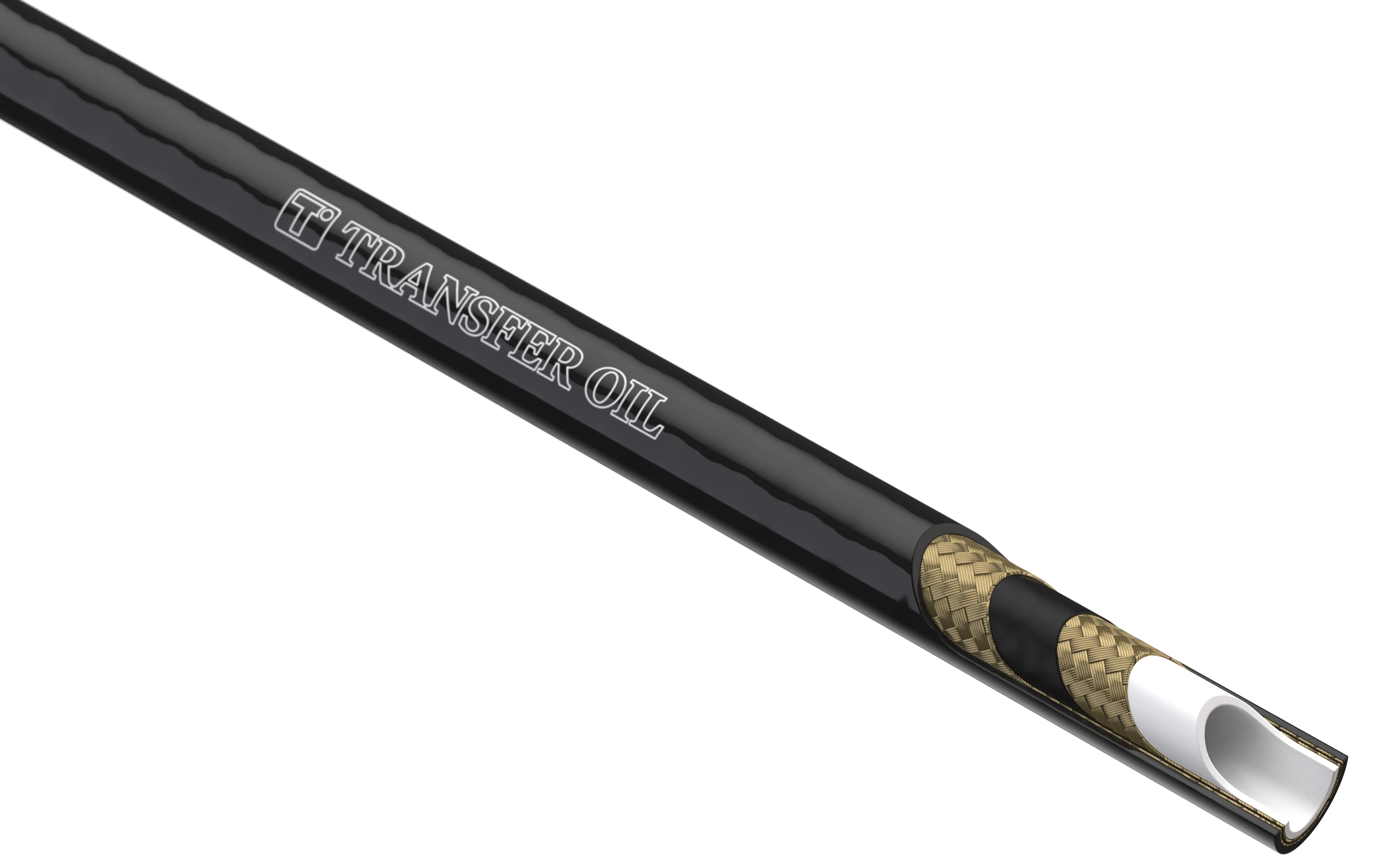

Inner Tube

Polyester elastomer

Reinforcement

DN6 – DN 10: two braids of steel wire
DN12: One braid of aramid fiber plus one braid of steel wire

Cover

Polyurethane - black - non pinpricked - laser branding

Applications

High pressure jacking applications - Rescue and safety equipment - High pressure systems and pumps - Bolt tensioning tools - Re-railing equipment

Features

Robust construction for heavy-duty application and prolonged service life - Double steel braid, or combined reinforcement, offers low volumetric expansion and minimal change in length - High abrasion resistance

Description

High Pressure hose suitable for petroleum or synthetic or water based hydraulic fluids in hydraulic systems for static jacking applications with 2:1 safety factor - The steel braid design provides very high mechanical strength extending hose service life even in harsh operating conditions - High abrasion resistant polyurethane cover approved by MSHA (Mine Safety and Health Administration), number IC-305.

Temperature Range

-40 °C to 100 °C (-40 °F to 212 °F): limited to 70 °C ( 158 °F) for air and water based fluids

Vacuum Rating

-0,93 bar; -700 mm Hg|-13,5 psi; -27,5 inch Hg

Standard Branding

 - TO HYDRAULIC - Part No - JACK HOSE 2SB - Inch Size - DN Size - WP bar / psi - MSHA IC-305 - MADE IN ITALY - www.transferoil.com - QQ/YY - Batch No

 - TO HYDRAULIC - Part No - JACK HOSE - Inch Size - DN Size - WP bar / psi - MSHA IC-305 - MADE IN ITALY - www.transferoil.com - QQ/YY - Batch No
