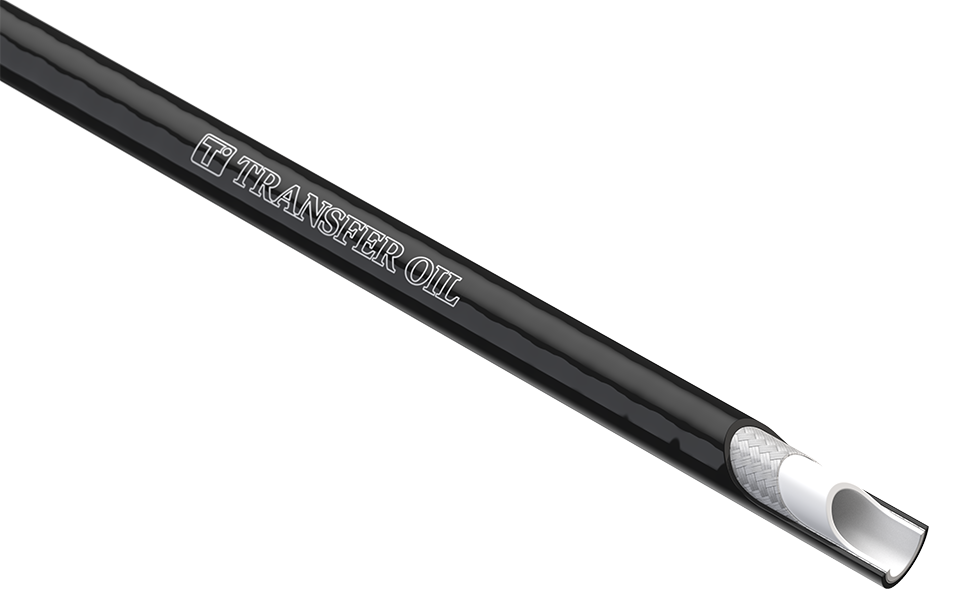

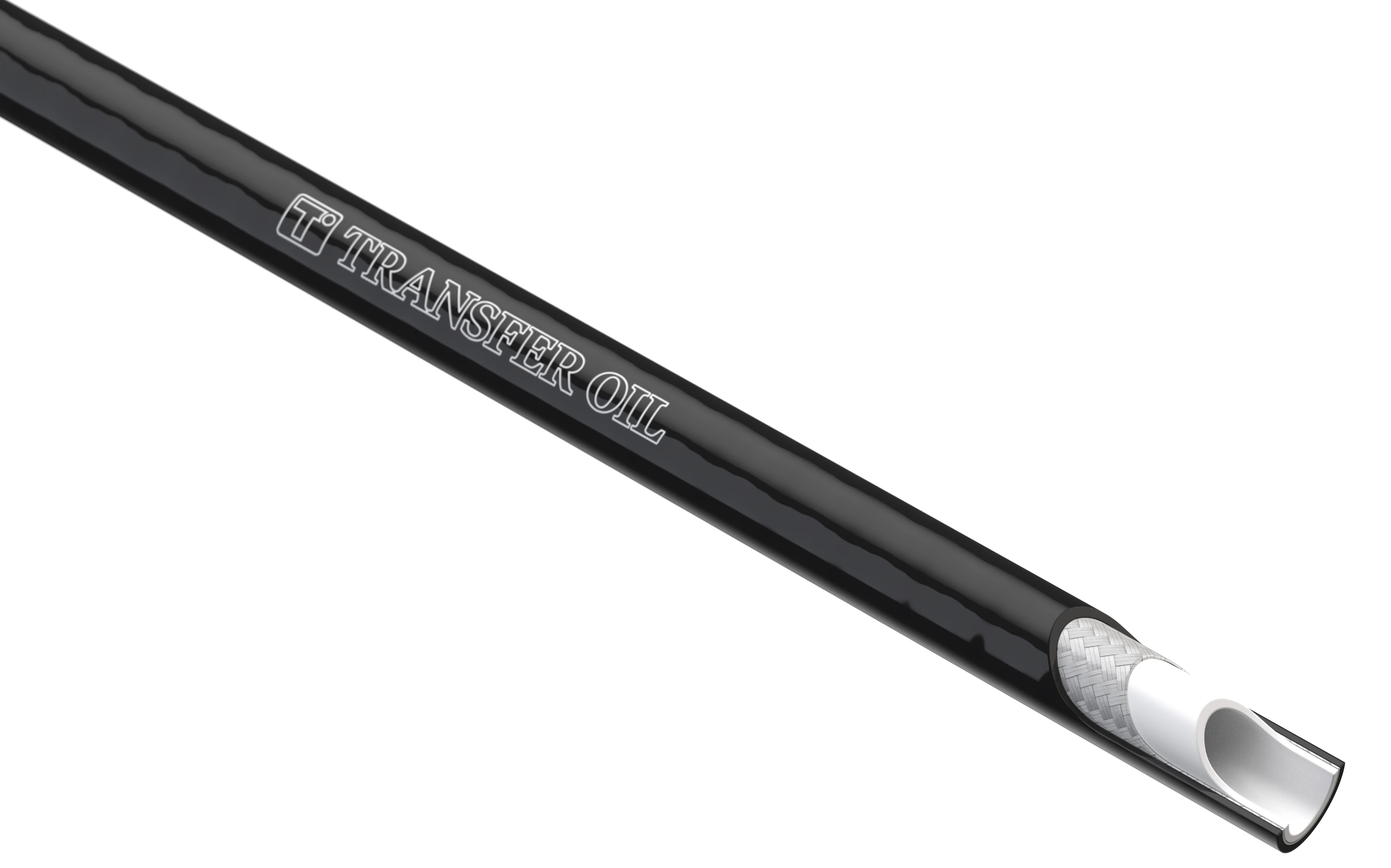

092 - PILOT FL

Compact lightweight hose for servo control applications from 100 to 175 bar (1400 to 2500 psi)

Technical details

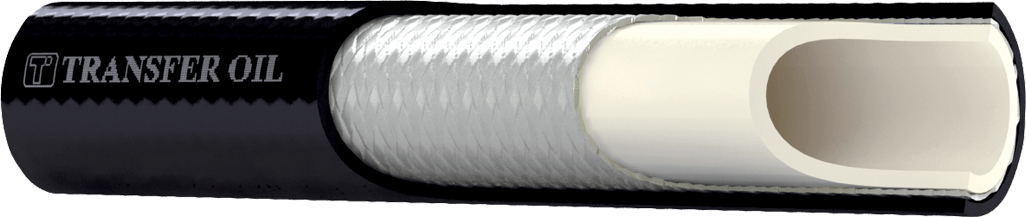

Inner tube

Polyester elastomer


One braid of synthetic fiber


Anti-grip polyurethane - black - pinpricked - white ink-jet branding


Servo control - Pilot lines - General low pressure hydraulics


Lightweight - Compact design - High flexibility - Low grip cover - Low volumetric expansion


Low pressure service hose suitable for hydraulic applications where there is a requirement for increased resistance to abrasion and limited grip cover at the same time. For use with petroleum synthetic or water based hydraulic fluids in hydraulic systems. Suitable for hydraulic and pneumatic pilot control lines.

Temperature Range

-40 °C to +100 °C (-40 °F to +212 °F): limited to +70 °C (+158 °F) for air and water based fluids

Vacuum Rating

-0,93 bar; -700 mm Hg|-13,5 psi; -27,5 inch Hg

Standard Branding

- TO HYDRAULIC - Part No - PILOT FL - Inch Size - DN Size - WP bar / psi - MADE IN ITALY - www.transferoil.com - Batch No
